MOUNT
·
STEP D9 · 09 OF 10
09
Close the rear short side and verify diagonals
Right-side closure locks the rectangle — diagonals must match within 5 mm.

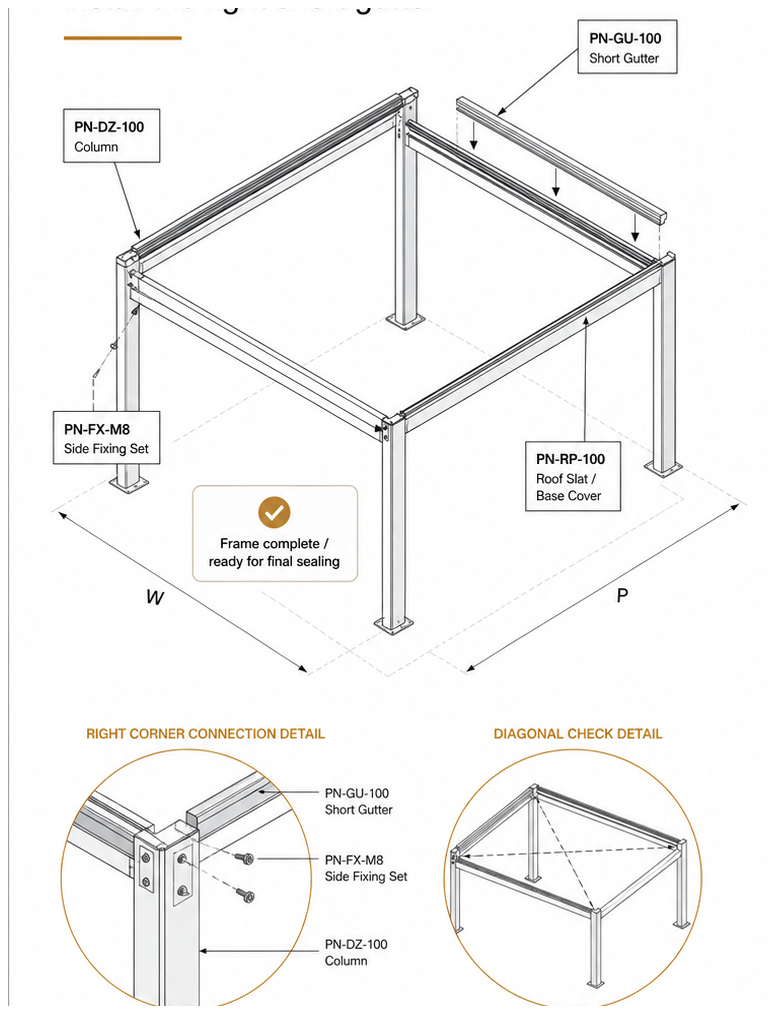

Fig. 09 — Close the rear short side and verify diagonals
- 1Position the right short gutter between front and rear side members.
- 2Align both ends so the gutter seats fully.
- 3Insert side fixing set through pre-drilled holes.
- 4Measure both diagonals to confirm squareness.
- 5Tighten all side fasteners evenly.
- 6Confirm frame is fully closed and ready for final sealing.
- Short gutter: PN-GU-100
- Diagonal tolerance: ±3 mm
- Side fasteners: M8
- Frame status: fully closed rectangle
- Side member: C-2
Measure diagonals after closing the right side.
A twisted frame affects roof slat alignment.
Tape measure, square, clamp, torque wrench
12 min
About step 9 of the Luxa Riparo Pura Carport installation
Close the rear short side and verify diagonals · MOUNT · 10 step · Luxa Riparo Pura Carport (free-standing aluminium carport)
Right-side closure locks the rectangle — diagonals must match within 5 mm.
