SUB-STEPS

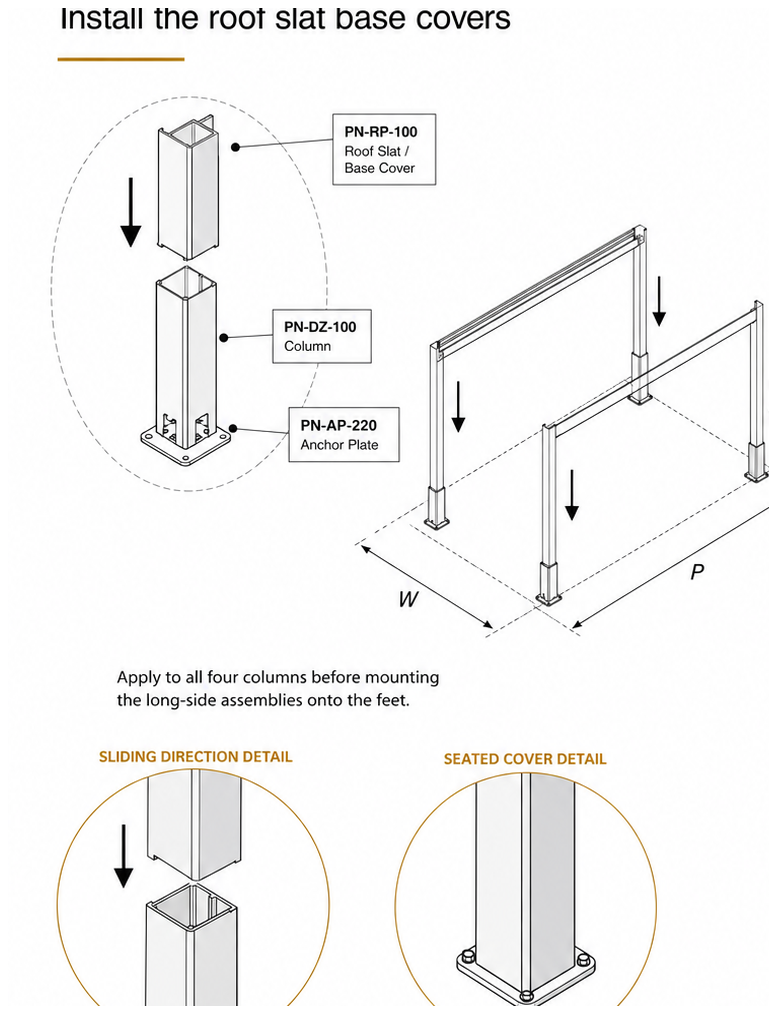

- 1Orient PN-RP-100 roof slat base cover.
- 2Slide cover down over the column as shown.
- 3Check cover is fully seated at the base.
- 4Repeat for all four columns.
- 5Confirm covers are unobstructed before lifting the side frames.
FRAME
·
STEP D6 · 06 OF 10
06
Slide on the asymmetric covers before lifting
Asymmetric covers slide before sides are permanently fixed.
SPECIFICATIONS
- Cover profile: PN-RP-100
- Applicable to: all 4 columns
- Fit direction: top-down
- Purpose: base closure / clean finish
TIP
Install covers before side assemblies are permanently fixed to the foot plates.
WATCH OUT
Forcing the part may scratch the coating.
TOOLS
Soft mallet, gloves
TIME
7 min
About step 6 of the Luxa Riparo Pura Carport installation
Slide on the asymmetric covers before lifting · FRAME · 10 step · Luxa Riparo Pura Carport (free-standing aluminium carport)
Asymmetric covers slide before sides are permanently fixed.
